Ingenico

连接支付终端可为客户提供流畅的支付流程，并方便收银员的工作。

重要

• Ingenico payment terminals require an IoT system.

• Ingenico is currently only available in Belgium, the Netherlands and Luxembourg.

• Odoo works with the Ingenico Lane/, Desk/, and Move/ payment terminals as they support the TLV communication protocol through TCP/IP.

配置

Connect an IoT system

Connecting an Ingenico payment terminal to Odoo is a feature that requires an IoT system. For more information on how to connect an IoT system to your database, please refer to the IoT documentation.

Configure the Lane/Desk/Move 5000 terminals for Ingenico BENELUX

1. Press the function button (F on Lane/5000, ⦿ on Desk/5000 and Move/5000).

2. Go to Kassa menu ‣ Settings Menu and enter the settings password.

3. Select Change Connection and press OK on the next screen.

4. Select TCP/IP and IP-address.

5. On the next screen, enter the IP address of your IoT system.

6. Enter 9000 as port number and press OK on the next screen.

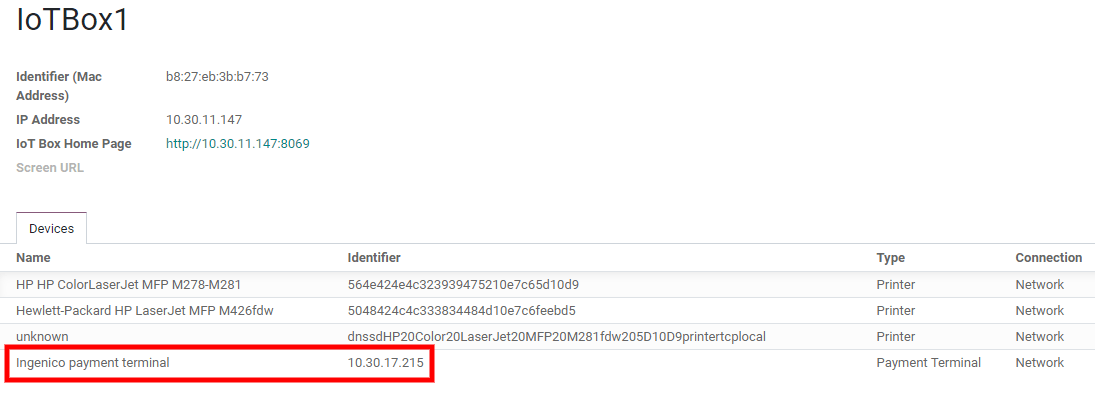

At this point, the terminal restarts and should be displayed on the IoT system’s form in Odoo.

配置支付方式

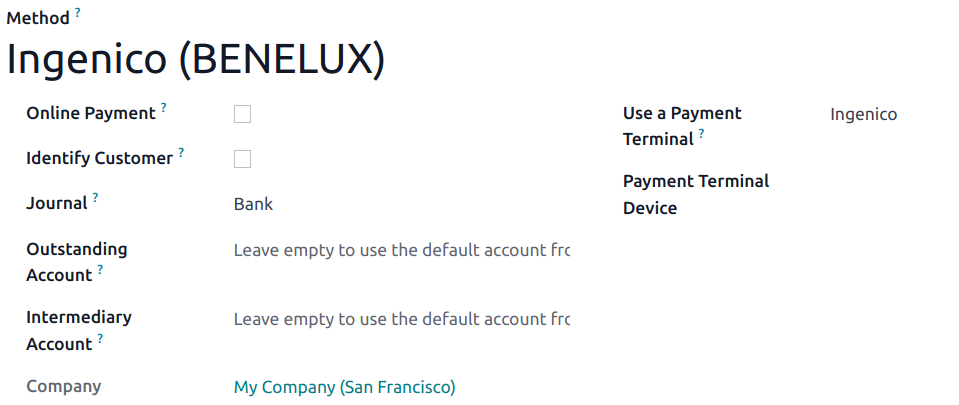

Enable the payment terminal in the application settings and create the related payment method. Set the journal type as Bank and select Ingenico in the Use a Payment Terminal field. Then, select your terminal device in the Payment Terminal Device field.

创建了付款方式后，您就可以在 POS 设置中选择它。为此，请进入 POS 设置，点击 编辑，然后在 付款 部分添加付款方式。
